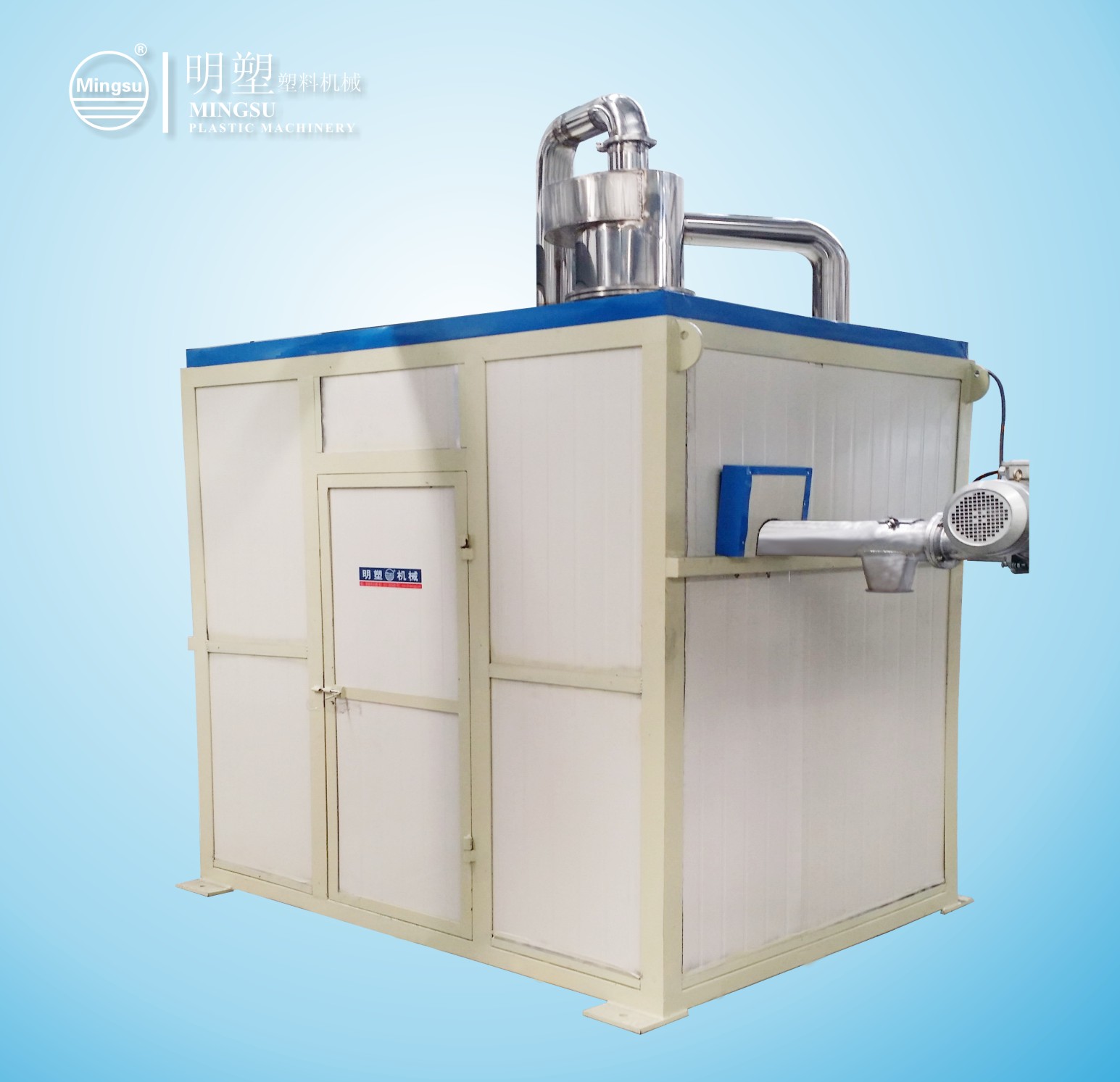

液氮磨粉機Liquid Nitrogen Grinding Mill
性能介紹Brief introduction：
液氮磨粉機使用液氮把塑料切片低溫脆化后再磨粉，具有產量高，磨粉效果好的優點，特別適用于低熔指塑料切片的磨粉，每小時產量可以達到500--700公斤。
Froze by liquid nitrogen, raw materials become brittle and can be pulverized easily. Our Liquid nitrogen grinding mill has the advantages of high output and good quality mill etc., it’s specially suitable for low melt index plastic granules. The hourly output can reach 500-700kg.
使用范圍Range of application：
該液氮磨粉機使用于在常溫下無法粉碎的各種物料，廣泛應用于各種化工、石化、機械、船舶、汽車行業、電子行業、服裝、涂料、印刷、工程塑料、橡膠、鞋材、熱塑性物料、熱熔膠、尼龍、聚酯、聚丙烯、聚乙烯、熱塑性彈性體TPU、TPEE、尼龍類PA11、PA1010、PA12、PA6、PA66、PA610共聚尼龍、聚酯類、聚四氟乙烯、EVA、食品行業（辣椒粉）、中西藥材等等產品的超細粉碎。
This liquid nitrogen grinding mill is widely used to all kinds of plastic granules which can’t be crushed at normal temperature, such as all kinds of plastic materials from chemical, petrochemical, machinery, ship, automobile, electronics industry, clothing, coating, printing, engineering plastic, rubber, shoes material, thermoplastic material, hot melt adhesive, nylon, polyester, PP, PE, TPU, TPEE, PA11, PA1010, PA12, PA6, PA66, PA610, PTFE, EVA, food industry(paprika), Chinese and western medicine etc.
主要技術參數Main Technical Parameter:
型 號Model | MS500 |
進料粒度 input material size | ＜6mm |
成品粒度output material size | 10-425（目mesh） |
產量范圍output range | 500--700kg/h |
主軸轉速main shaft running speed | 3000r/m |
磨盤數量 millstone quantity | 1個（pc) |
主機電機功率Main motor power | 55kw |
風機電機功率Fan motor power | 7.5kw |
喂料電機功率Feeding motor power | 2.2kw |
出料電機功率Discharge motor power | 2.2kw |
總功率Total power（kw） | 66.9kw |
外形尺寸（長×寬×高） Overall size(L×W×H) | 3800mm×2600mm×3900mm |
??
